Product details of the golf cart supply
Product Introduction
Rockbaby golf cart supply is carefully designed by our professionals. The product is durable and can be used for a long time. Reliable quality assurance is the necessity for golf cart supply to attract more clients.
Product Introduction
Product parameters
Model No. | TEG48B-02 (Ture 4 SEATS ) | ||
Loading quantity | 19 pcs/ 40HQ | ||
GENERAL SPECIFICATION | |||

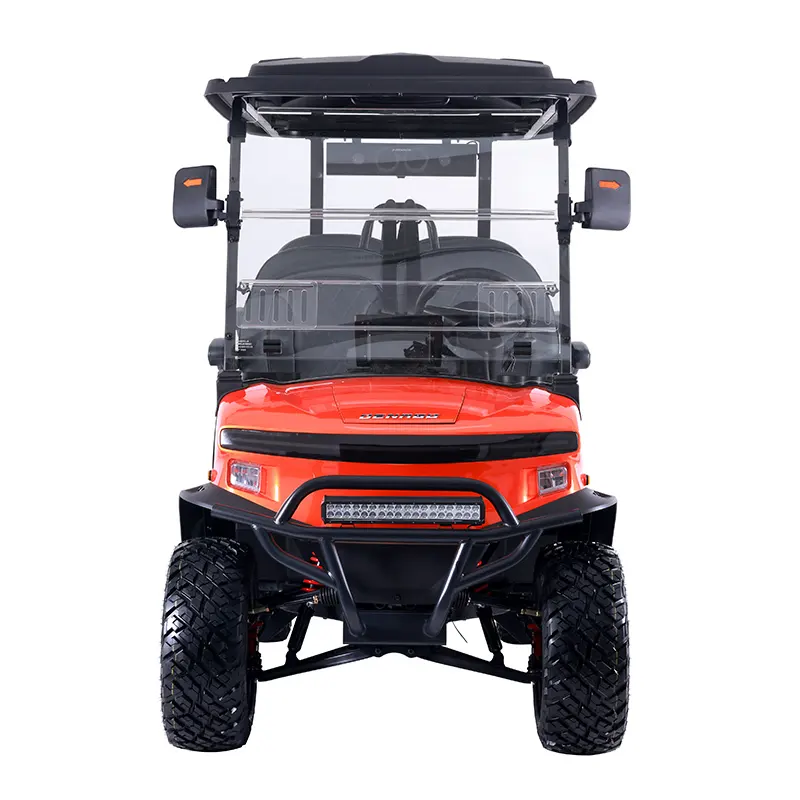

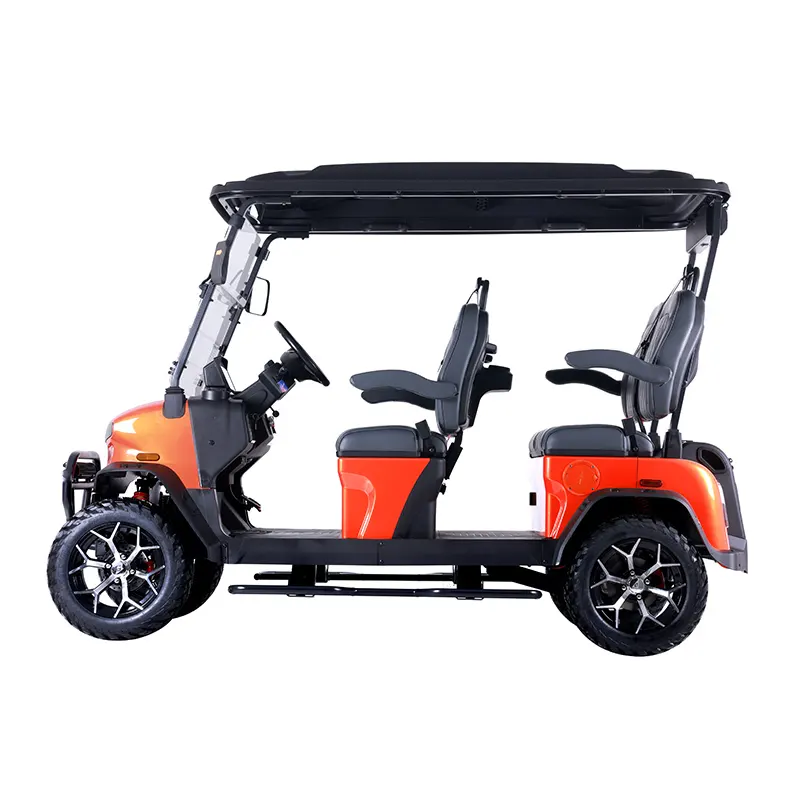

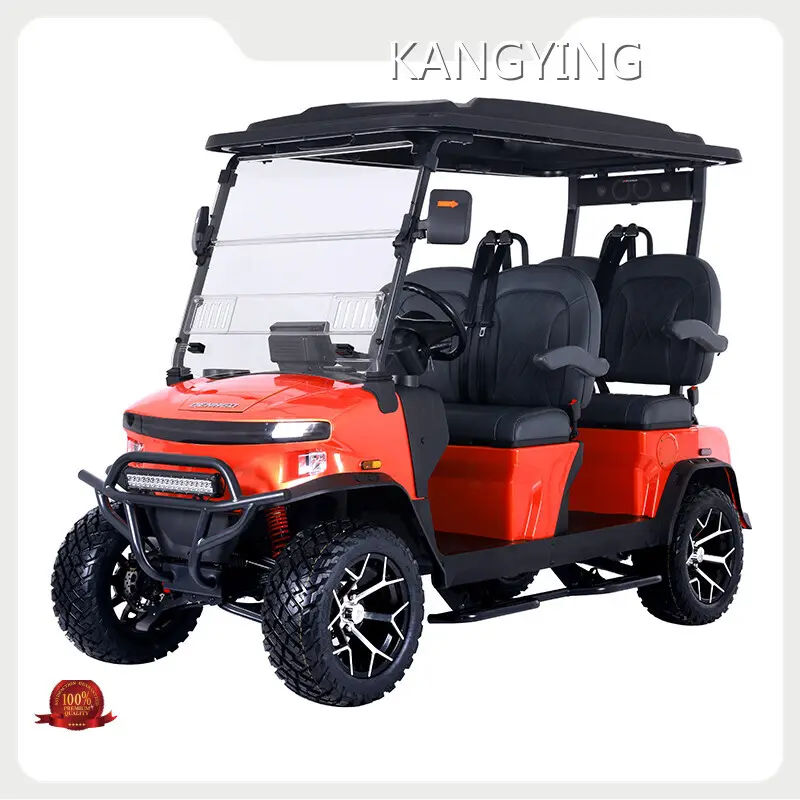

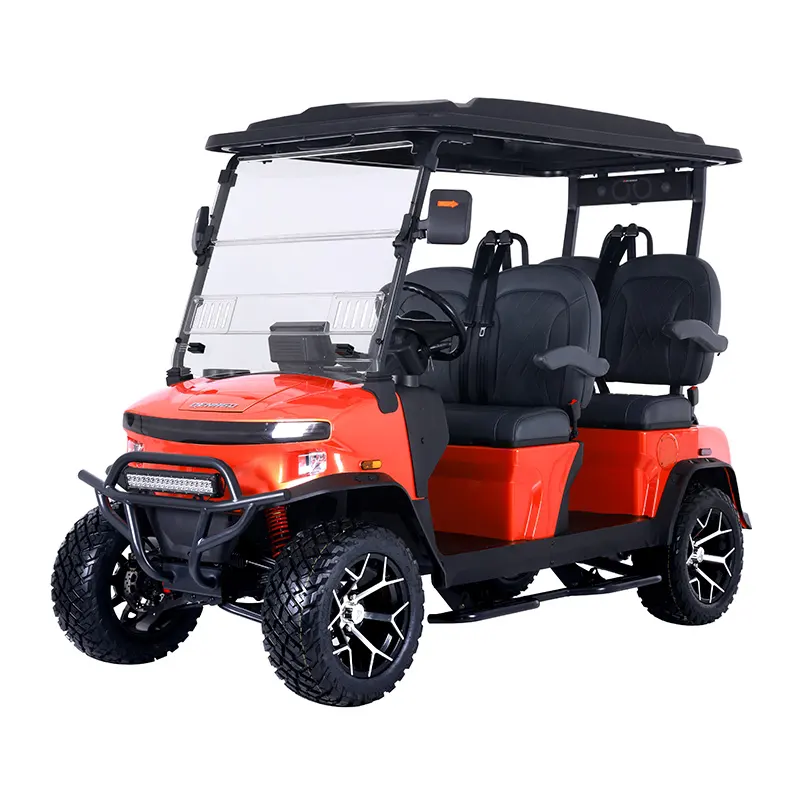

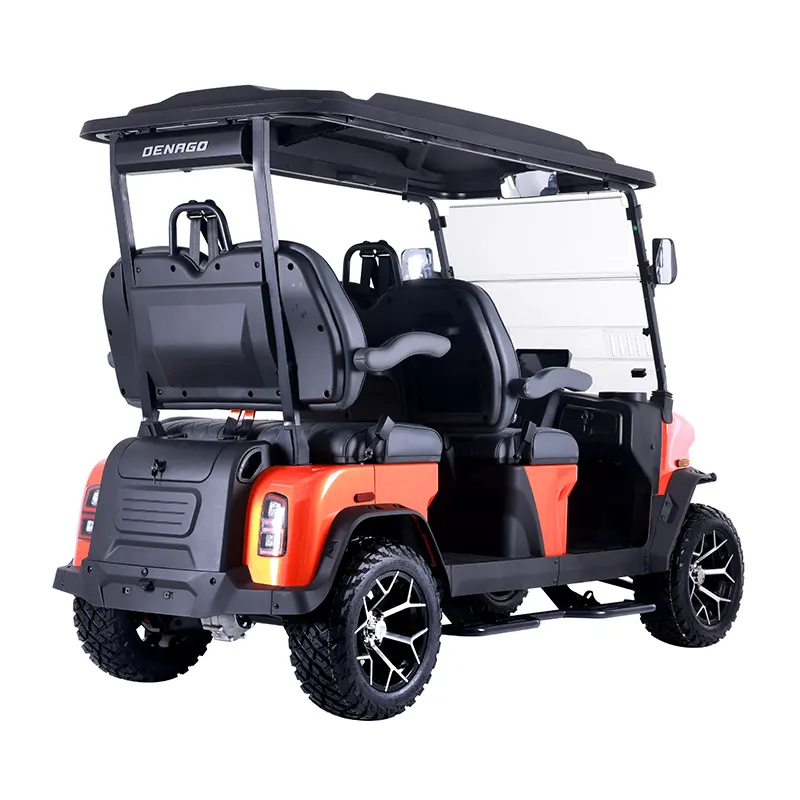

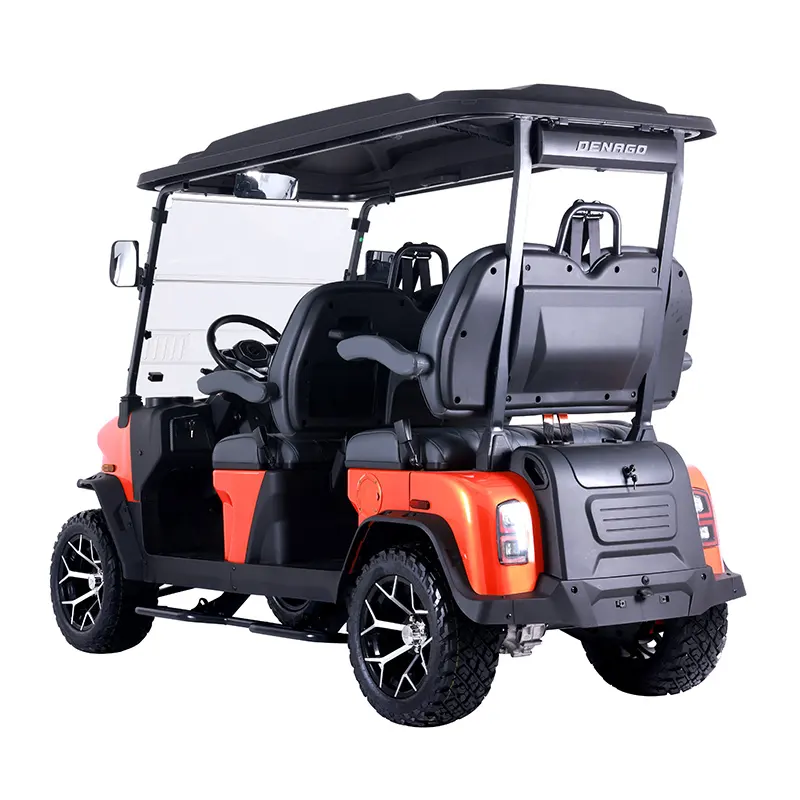

Battery | Lithium iron phosphate battery51.2V 105Ah | The following Picture just for your reference, your golf car will be subject to your choose. | |
Motor | 48V AC 5KW Motor | ||
Controller | 48V/400A AC Controller | ||
Charger | Vehicle-mounted intelligent charger | ||
Accelerator | Inductive 0-5V | ||
Suspension | Front double cross arm independent suspension/Rear single arm + high strength spring shock absorption | Overall dimensions | 2995×1245×2040mm |
Steering | Self Compensating" Rack & Pinion"Steering | Max. loading weight | 400KG |
Brakes | Four Wheel Disc Brake and electronic parking | Net weight | 550KG |
Passenger capacity | 4 | Chassis and frame: | Aluminium alloy |
Driving Distance | 75 KM | Wheel base | 2050mm |
Max. speed | 40KM/h | Front wheel tread | 990mm |
Minimum turning radius | 3.6m | Rear wheel tread | 990mm |
Max. climbing ability | 30% | Tires | Off-road 23*10-14 (Aluminium wheel) |
Minimum ground clearance | 175mm | Braking distance | ≦5 |
STANDARD CONFIGURATION | |||
Windshield | Foldable Windshield (Anti-aging, anti-UV) with manual wiper | ||
Dashboard | LCD 10.1 inch (MP3, MP4, reverse video) | ||
Speaker | Professional grade long bar stereo | ||
Body | PP+GF | ||
Roof | PP | ||
Mirror Supply | Left and right rearview mirrors with turning lights/in-car mirrors | ||
Steering system | Self Compensating" Rack & Pinion"Steering | ||
Brake system | Four Wheel Disc Brake and electronic parking | ||
LED Light System | Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp | ||
Steering Column | With combination switch (turn signal switch, horn switch and strip spotlight switch) | ||
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
Seats | Leather fabric + high rebound PU seat + folding armrest | ||
Rear axle | Integrated, Gear ratio12.31:1 | ||
Storing space | Front built-in storage box and rear storage box | ||
Power socket/output | 110V America standard socket | ||
Starting | NFC card switch; Combination switch of steering and light; R/N/D/S knob gear, turn signal automatic return |
Company Advantage
• Our company is located in a position with pleasant surroundings and convenient traffic. And the outward transportation of products is convenient based on that.
• KANGYING strives to open up domestic and international markets. ELECTRIC SCOOTER,ELECTRIC POWER TOOLS are sold to various countries and regions around the world. They are well recognized by consumers.
• We have a professional technical team to provide customers with the best technical support and guarantee in the process of our development and growth.
If you have any interest in KANGYING's ELECTRIC SCOOTER,ELECTRIC POWER TOOLS, order now then you can enjoy discounts!
