Rockbaby Dirt Bike Motorcycle Dirt Bike Motorcyclecompany

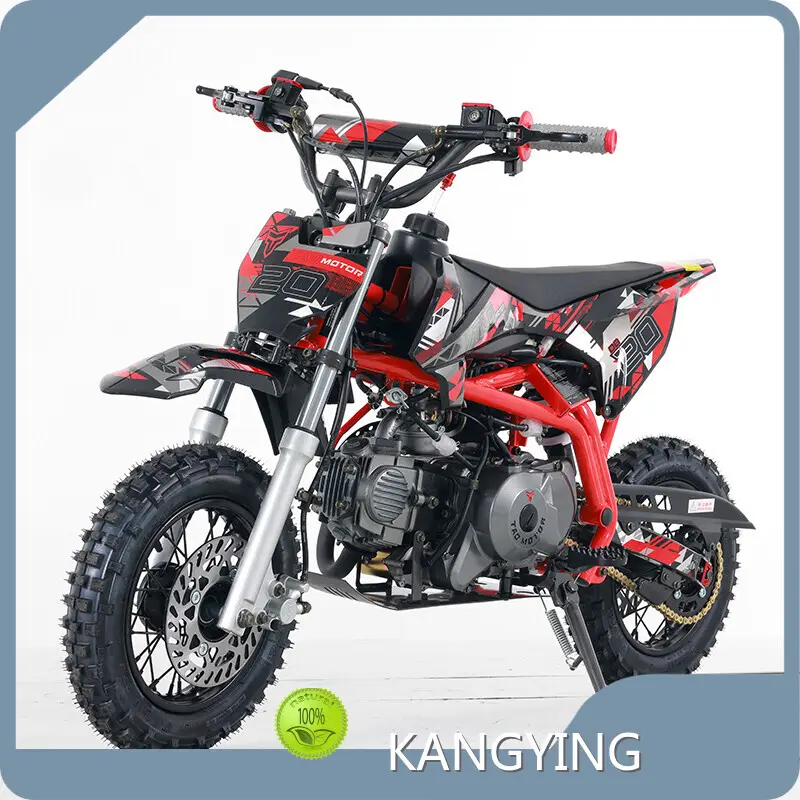

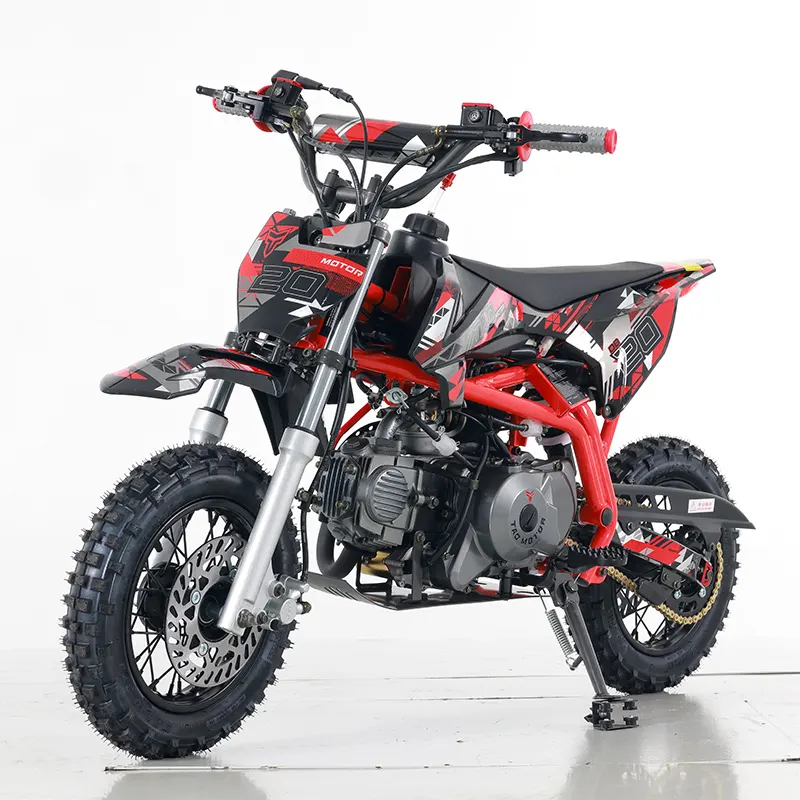

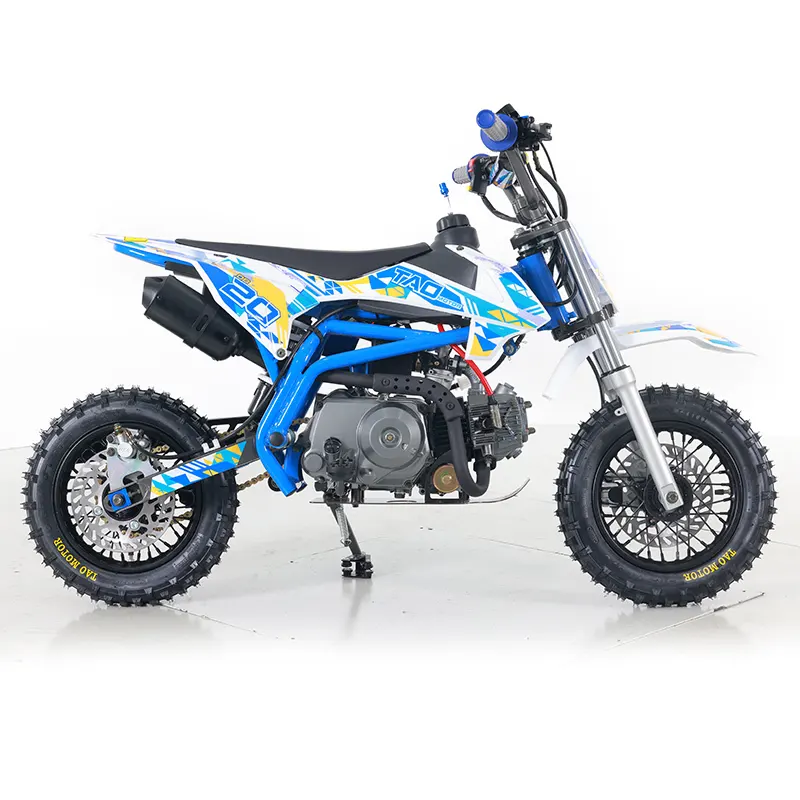

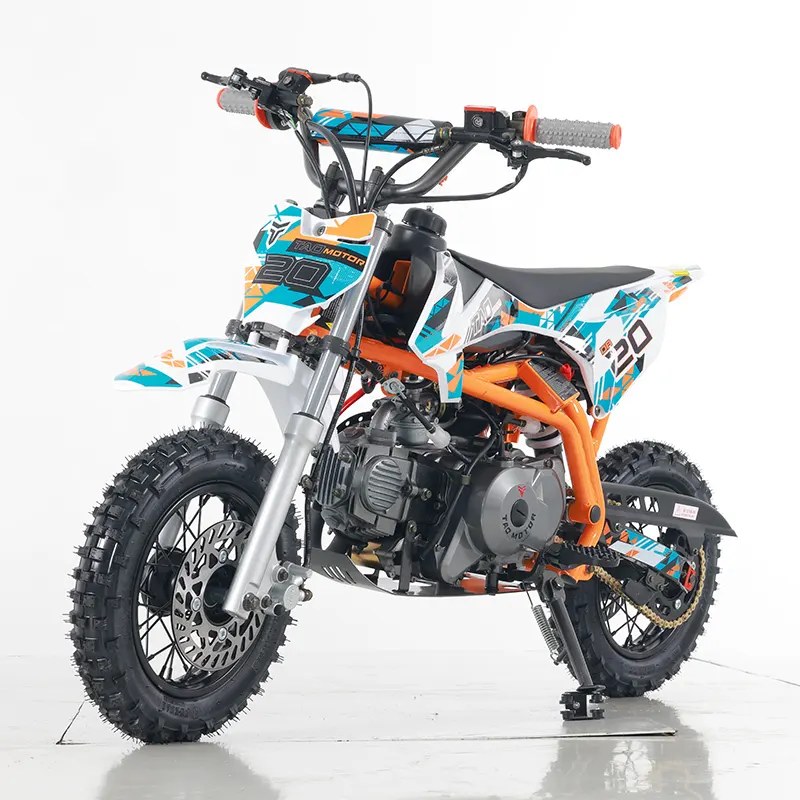

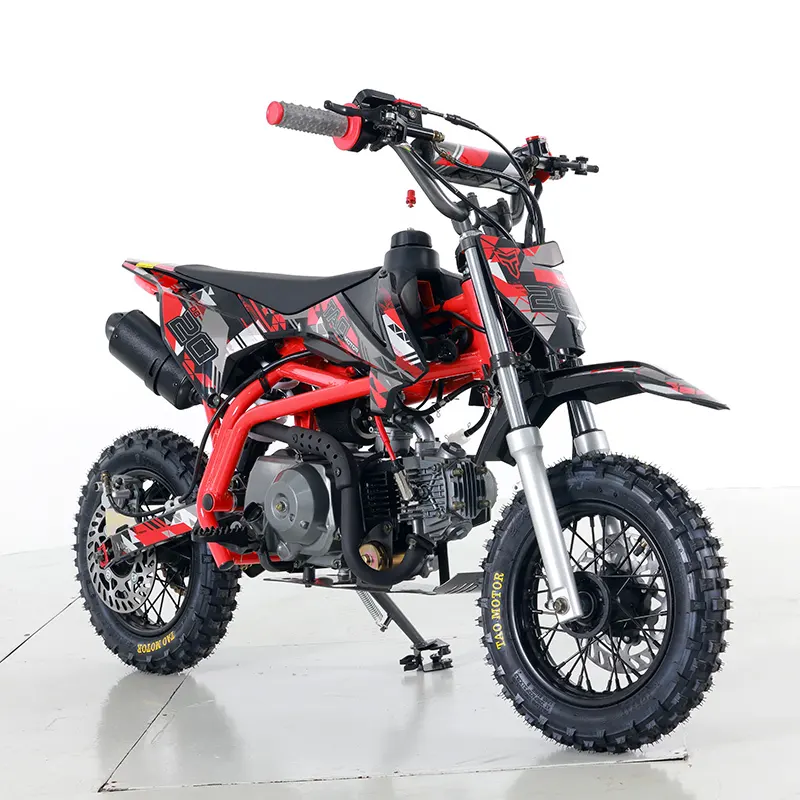

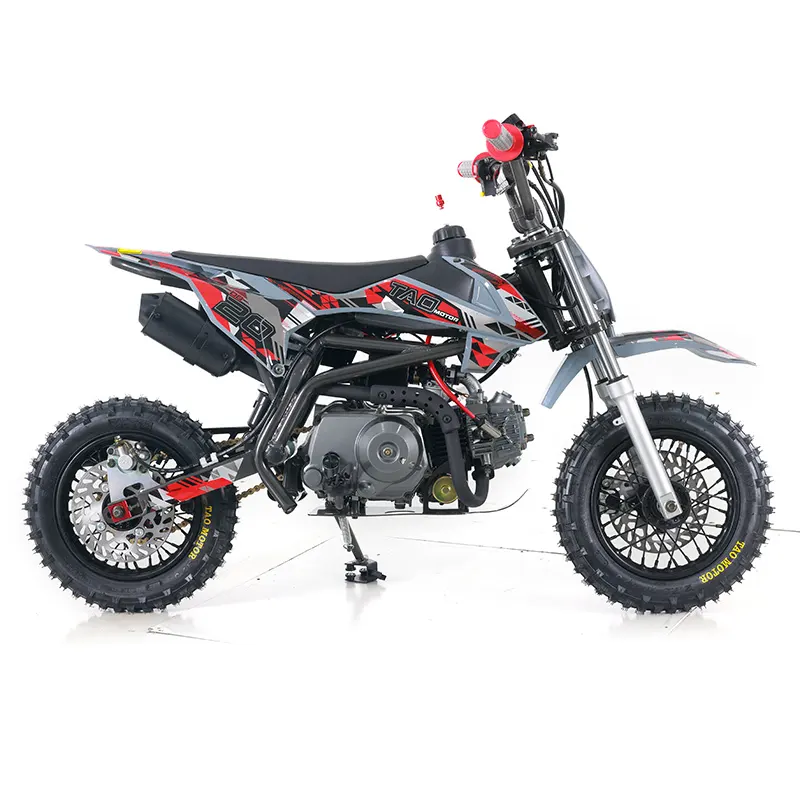

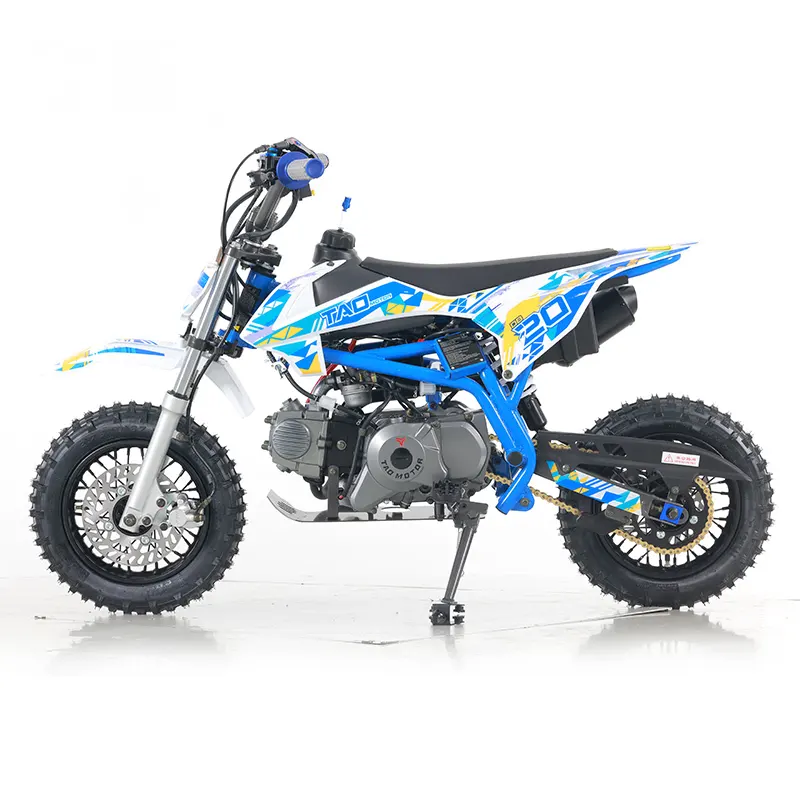

Product details of the dirt bike motorcycle
Quick Detail
The design stage of dirt bike motorcycle during the production process also functions importantly. Before tapping into the market, it must pass the scientific test. KANGYING INDUSTRY LIMITED has good after-sales service support and sincere service concept for dirt bike motorcycle.
Product Information
Compared with other products in the same category, dirt bike motorcycle has outstanding advantages which are mainly reflected in the following points.
Product Introduction
Product parameters
|
MODEL |
DB20 |
|
Type: |
110cc, Air cooled, 4-stroke, 1-cylinder |
|
Bore×Stroke: |
φ52.4*49.5mm |
|
Compression Ratio: |
8.8:1 |
|
Carburetor: |
PZ19 |
|
Ignition: |
CDI |
|
Starting: |
Electrical start |
|
Transmission: |
Automatic |
|
Drive Train: |
Chain drive |
|
Max. Power: |
4.7kw/8500r/min |
|
Max. Torque: |
6.5Nm/6500r/min |
|
Suspension/Front: |
Double shock absorber |
|
Suspension/Rear: |
Oil damper |
|
Brakes/Front: |
Hydraulic disc |
|
Brakes/Rear: |
Hydraulic disc |
|
Tires/Front: |
2.75-10 |
|
Tires/Rear: |
2.75-10 |
|
Overall Size (L*W*H) |
1370×630×840mm |
|
Seat Height: |
620mm |
|
Wheelbase: |
970mm |
|
Ground Clearance: |
160mm |
|
Battery: |
12V4Ah |
|
Fuel Capacity: |
4L |
|
Dry Weight: |
53kg |
|
Max. Load: |
70kg |
|
Package Size: |
1210×380×600mm |
|
Loading Quantity: |
78pcs/20´GP, 224 pcs/40´HQ |
|
Max. Speed: |
50km/h |
|
Starting Time: |
≤15s |
