Product Introduction
Product parameters
Model No. | TEG48B-02 (Ture 4 SEATS ) | ||
Loading quantity | 19 pcs/ 40HQ | ||
GENERAL SPECIFICATION | |||

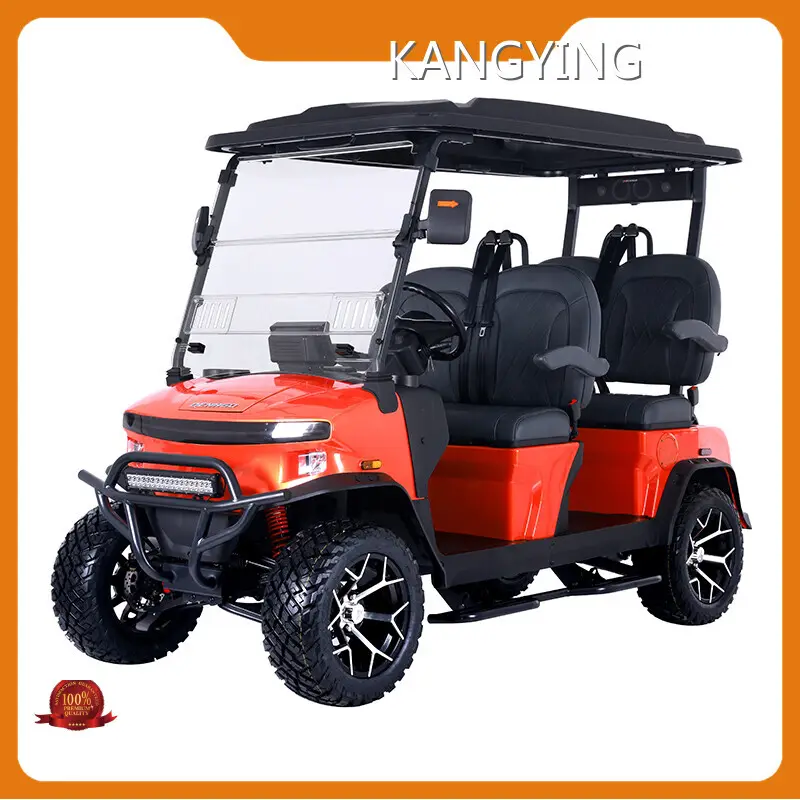

Battery | Lithium iron phosphate battery51.2V 105Ah | The following Picture just for your reference, your golf car will be subject to your choose. | |
Motor | 48V AC 5KW Motor | ||
Controller | 48V/400A AC Controller | ||
Charger | Vehicle-mounted intelligent charger | ||
Accelerator | Inductive 0-5V | ||
Suspension | Front double cross arm independent suspension/Rear single arm + high strength spring shock absorption | Overall dimensions | 2995×1245×2040mm |
Steering | Self Compensating" Rack & Pinion"Steering | Max. loading weight | 400KG |
Brakes | Four Wheel Disc Brake and electronic parking | Net weight | 550KG |
Passenger capacity | 4 | Chassis and frame: | Aluminium alloy |
Driving Distance | 75 KM | Wheel base | 2050mm |
Max. speed | 40KM/h | Front wheel tread | 990mm |
Minimum turning radius | 3.6m | Rear wheel tread | 990mm |
Max. climbing ability | 30% | Tires | Off-road 23*10-14 (Aluminium wheel) |
Minimum ground clearance | 175mm | Braking distance | ≦5 |
STANDARD CONFIGURATION | |||
Windshield | Foldable Windshield (Anti-aging, anti-UV) with manual wiper | ||
Dashboard | LCD 10.1 inch (MP3, MP4, reverse video) | ||
Speaker | Professional grade long bar stereo | ||
Body | PP+GF | ||
Roof | PP | ||
Mirror Supply | Left and right rearview mirrors with turning lights/in-car mirrors | ||
Steering system | Self Compensating" Rack & Pinion"Steering | ||
Brake system | Four Wheel Disc Brake and electronic parking | ||
LED Light System | Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp | ||
Steering Column | With combination switch (turn signal switch, horn switch and strip spotlight switch) | ||
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
Seats | Leather fabric + high rebound PU seat + folding armrest | ||
Rear axle | Integrated, Gear ratio12.31:1 | ||
Storing space | Front built-in storage box and rear storage box | ||
Power socket/output | 110V America standard socket | ||
Starting | NFC card switch; Combination switch of steering and light; R/N/D/S knob gear, turn signal automatic return |
Company Advantages
· The production of Rockbaby performance golf carts adopts internationally advanced technology to achieve efficient and standard production.
· This product is noted for its high quality and reliability.
· KANGYING INDUSTRY LIMITED will strive to maintain sustained profit growth and capacity enhancement in the already competitive areas.
Company Features
· KANGYING INDUSTRY LIMITED has evolved over the years, releasing hundreds of high-quality products including performance golf carts. Today we can say that we specialize in production.
· There are advanced production equipment used for production of performance golf carts.
· The objective of KANGYING INDUSTRY LIMITED is to supply the best performance golf carts for customers. Check it!
Application of the Product
KANGYING's performance golf carts can be used in many industries.
KANGYING is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.
