For Sport Top Electric Golf Carts by Rockbaby
Product Introduction
Product parameters
| Model No. | TEG48B-02 (Ture 4 SEATS ) | ||
| Loading quantity | 19 pcs/ 40HQ | ||
| GENERAL SPECIFICATION | |||

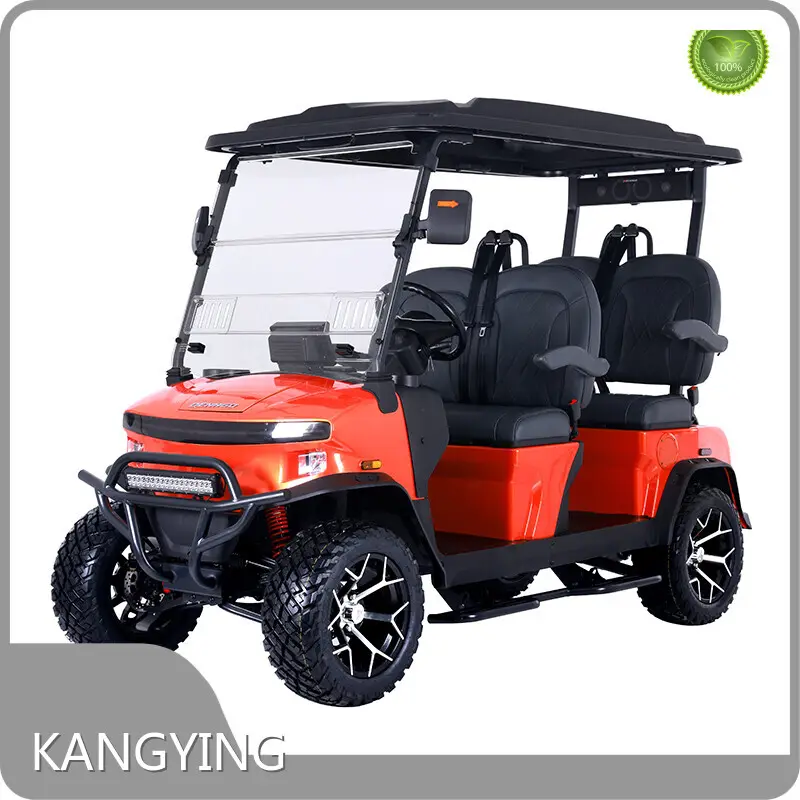

| Battery | Lithium iron phosphate battery51.2V 105Ah | The following Picture just for your reference, your golf car will be subject to your choose. | |
| Motor | 48V AC 5KW Motor | ||
| Controller | 48V/400A AC Controller | ||
| Charger | Vehicle-mounted intelligent charger | ||
| Accelerator | Inductive 0-5V | ||
| Suspension | Front double cross arm independent suspension/Rear single arm + high strength spring shock absorption | Overall dimensions | 2995×1245×2040mm |
| Steering | Self Compensating" Rack & Pinion"Steering | Max. loading weight | 400KG |
| Brakes | Four Wheel Disc Brake and electronic parking | Net weight | 550KG |
| Passenger capacity | 4 | Chassis and frame： | Aluminium alloy |
| Driving Distance | 75 KM | Wheel base | 2050mm |
| Max. speed | 40KM/h | Front wheel tread | 990mm |
| Minimum turning radius | 3.6m | Rear wheel tread | 990mm |
| Max. climbing ability | 30% | Tires | Off-road 23*10-14 (Aluminium wheel) |
| Minimum ground clearance | 175mm | Braking distance | ≦5 |
| STANDARD CONFIGURATION | |||
| Windshield | Foldable Windshield (Anti-aging, anti-UV) with manual wiper | ||
| Dashboard | LCD 10.1 inch (MP3, MP4, reverse video) | ||
| Speaker | Professional grade long bar stereo | ||
| Body | PP+GF | ||
| Roof | PP | ||
| Mirror Supply | Left and right rearview mirrors with turning lights/in-car mirrors | ||
| Steering system | Self Compensating" Rack & Pinion"Steering | ||
| Brake system | Four Wheel Disc Brake and electronic parking | ||
| LED Light System | Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp | ||
| Steering Column | With combination switch (turn signal switch, horn switch and strip spotlight switch) | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Seats | Leather fabric + high rebound PU seat + folding armrest | ||
| Rear axle | Integrated, Gear ratio12.31:1 | ||
| Storing space | Front built-in storage box and rear storage box | ||
| Power socket/output | 110V America standard socket | ||
| Starting | NFC card switch; Combination switch of steering and light; R/N/D/S knob gear, turn signal automatic return | ||
Company Advantages
· While producing Rockbaby top electric golf carts, the quality of materials are taken into seriously.
· top electric golf carts's performance is in the leading position both inside and outside.
· KANGYING INDUSTRY LIMITED can help to identify clients' needs and circumstances.
Company Features
· KANGYING INDUSTRY LIMITED is professional at producing a wide range of top electric golf carts.
· Our plant employs advanced and modern production facilities. They are designed to improve overall production efficiency. This enables us to deliver products in the quickest manner.
· We firmly believe that our top electric golf carts will be your best choice.
Application of the Product
KANGYING's top electric golf carts can be used in many industries.
In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
