Electric Bike Supplier Factory
Product Introduction
Product parameters
| Model No. | TEG48B-02 (Ture 4 SEATS ) | ||
| Loading quantity | 19 pcs/ 40HQ | ||
| GENERAL SPECIFICATION | |||

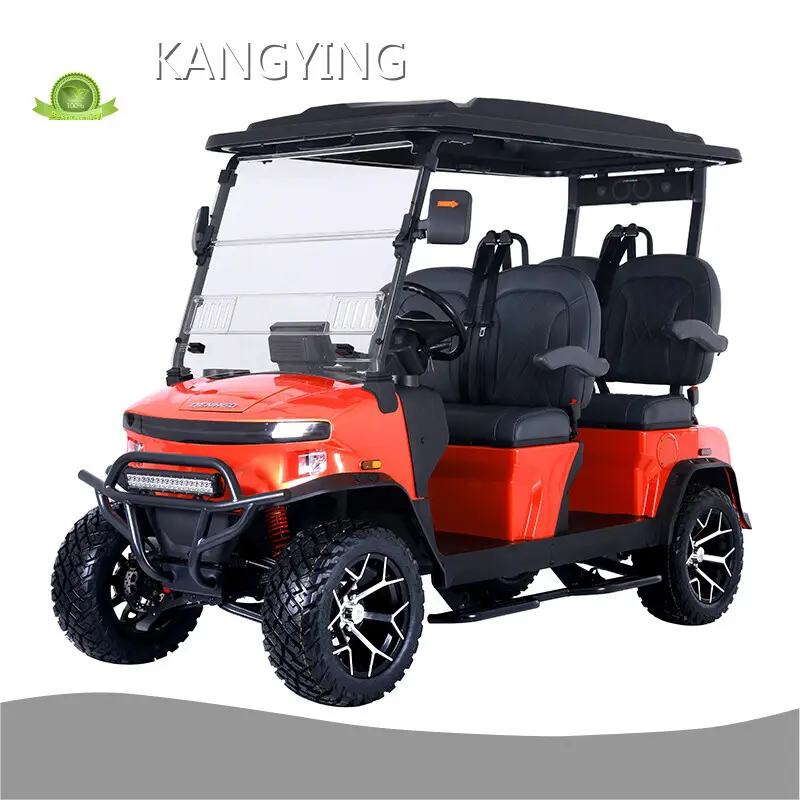

| Battery | Lithium iron phosphate battery51.2V 105Ah | The following Picture just for your reference, your golf car will be subject to your choose. | |
| Motor | 48V AC 5KW Motor | ||
| Controller | 48V/400A AC Controller | ||
| Charger | Vehicle-mounted intelligent charger | ||
| Accelerator | Inductive 0-5V | ||
| Suspension | Front double cross arm independent suspension/Rear single arm + high strength spring shock absorption | Overall dimensions | 2995×1245×2040mm |
| Steering | Self Compensating" Rack & Pinion"Steering | Max. loading weight | 400KG |
| Brakes | Four Wheel Disc Brake and electronic parking | Net weight | 550KG |
| Passenger capacity | 4 | Chassis and frame： | Aluminium alloy |
| Driving Distance | 75 KM | Wheel base | 2050mm |
| Max. speed | 40KM/h | Front wheel tread | 990mm |
| Minimum turning radius | 3.6m | Rear wheel tread | 990mm |
| Max. climbing ability | 30% | Tires | Off-road 23*10-14 (Aluminium wheel) |
| Minimum ground clearance | 175mm | Braking distance | ≦5 |
| STANDARD CONFIGURATION | |||
| Windshield | Foldable Windshield (Anti-aging, anti-UV) with manual wiper | ||
| Dashboard | LCD 10.1 inch (MP3, MP4, reverse video) | ||
| Speaker | Professional grade long bar stereo | ||
| Body | PP+GF | ||
| Roof | PP | ||
| Mirror Supply | Left and right rearview mirrors with turning lights/in-car mirrors | ||
| Steering system | Self Compensating" Rack & Pinion"Steering | ||
| Brake system | Four Wheel Disc Brake and electronic parking | ||
| LED Light System | Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp | ||
| Steering Column | With combination switch (turn signal switch, horn switch and strip spotlight switch) | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Seats | Leather fabric + high rebound PU seat + folding armrest | ||
| Rear axle | Integrated, Gear ratio12.31:1 | ||
| Storing space | Front built-in storage box and rear storage box | ||
| Power socket/output | 110V America standard socket | ||
| Starting | NFC card switch; Combination switch of steering and light; R/N/D/S knob gear, turn signal automatic return | ||
Company Advantages
· The production of Rockbaby electric bike supplier is organized according to the most advanced production practice of lean production.
· The product has excellent performance and extraordinary experience.
· KANGYING INDUSTRY LIMITED is able to provide customers with the most suitable electric bike supplier products to meet your particular needs.
Company Features
· Rockbaby occupies a very important position in producing and designing electric bike supplier.
· Over the past long years, we have worked with many international brands and retailers to manufacture products like electric bike supplier. Those experiences enabled us to understand customers thoroughly and how to provide services with added value.
· Due to the encouragement from clients, Rockbaby brand will continue to develop higher customer satisfaction. Please contact.
Application of the Product
KANGYING's electric bike supplier can be widely used in various fields.
With professional engineers and technicians in our company, KANGYING is able to provide one-stop and comprehensive solutions for customers.
