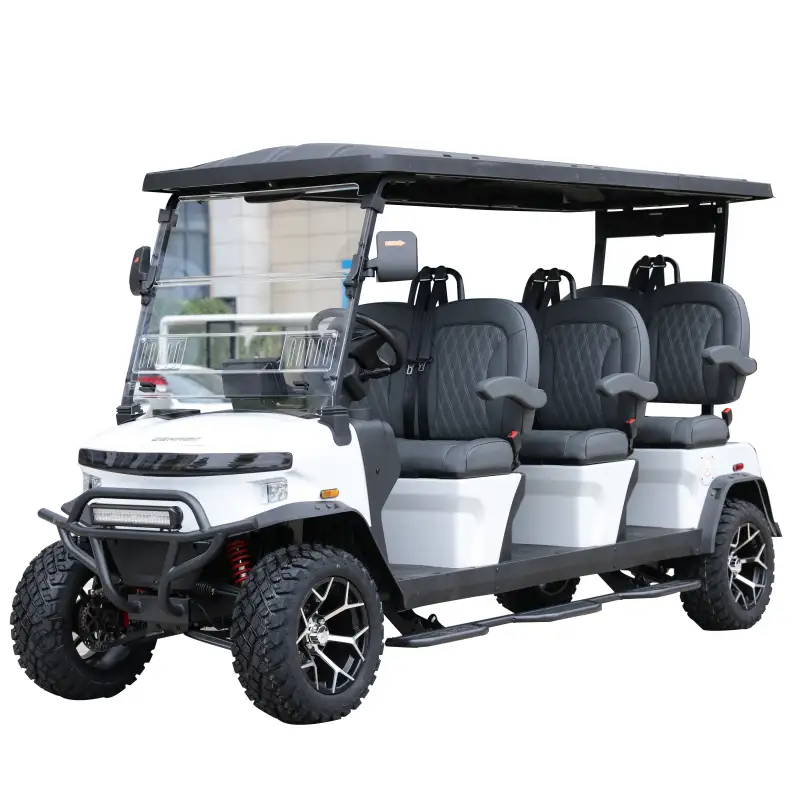

Golf Cart ROVER Ture 6 SEATS XXL
Model No.: ROVER XXL (Ture 6 SEATS )
Windshield：Foldable Windshield (Anti-aging, anti-UV) with manual wiper
Dashboard：LCD 10.1 inch (MP3, MP4, reverse video)
Speaker：Professional grade long bar stereo
Body：PP+GF
Roof：PP
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
7L2A8088_副本 (2)
7L2A8124_副本
7L2A8093_副本 (2)
7L2A8086_副本 (2)
7L2A8094_副本 (2)
7L2A8151_副本
7L2A8144_副本
7L2A8198_副本
7L2A8172_副本
Product parameters
| Model No. | ROVER XXL (Ture 6 SEATS ) | ||
| Loading quantity | 16 pcs/ 40HQ | ||
| GENERAL SPECIFICATION | |||
| Battery | Lithium iron phosphate battery 51.2V 105Ah |
The following Picture just for your reference, your golf car will be subject to your choose. | |
| Motor | 48V AC 5KW Motor | ||
| Controller | 48V/400A AC Controller | ||
| Charger | Vehicle-mounted intelligent charger | ||
| Accelerator | Inductive 0-5V | ||
| Suspension | Front double cross arm independent suspension/Rear single arm + high strength spring shock absorption | Overall dimensions | 3820×1245×2045mm |
| Steering | Self Compensating" Rack & Pinion" Steering |
Max. loading weight | 600KG |
| Brakes | Four Wheel Disc Brake and electronic parking | Net weight | 640KG |
| Passenger capacity | 4 | Chassis and frame： | Aluminium alloy |
| Driving Distance | 50 KM | Wheel base | 2980mm |
| Max. speed | 40KM/h | Front wheel tread | 1005mm |
| Minimum turning radius | 6.7m | Rear wheel tread | 1016mm |
| Max. climbing ability | 30% | Tires | Off-road 23*10-14 (Aluminium wheel) |
| Minimum ground clearance | 180mm | Braking distance | ≦9 |
| STANDARD CONFIGURATION | |||
| Windshield | Foldable Windshield (Anti-aging, anti-UV) with manual wiper | ||
| Dashboard | LCD 10.1 inch (MP3, MP4, reverse video) | ||
| Speaker | Professional grade long bar stereo | ||
| Body | PP+GF | ||
| Roof | PP | ||
| Mirror Supply | Left and right rearview mirrors with turning lights/in-car mirrors | ||
| Steering system | Self Compensating" Rack & Pinion" Steering |
||
| Brake system | Four Wheel Disc Brake and electronic parking | ||
| LED Light System | Front LED headlamp + running lamp + turn signal lamp+strip spotlight, rear brake lamp + running lamp | ||
| Steering Column | With combination switch (turn signal switch, horn switch and strip spotlight switch) | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Seats | Leather fabric + high rebound PU seat + folding armrest | ||
| Rear axle | Integrated, Gear ratio12.31:1 | ||
| Storing space | Front built-in storage box and rear storage box | ||
| Power socket/output | 110V-220V America standard socket | ||
| Starting | NFC card switch; Combination switch of steering and light; R/N/D/S knob gear, turn signal automatic return | ||
